ADVANCED, NON-INSTRUSIVE TRAFFIC CONTROL & DATA

 COMPACTVISION:
AI TRAFFIC DETECTION



Intelligent AI TRAFFIC detection sensor for traffic monitoring and dynamic traffic signal control.

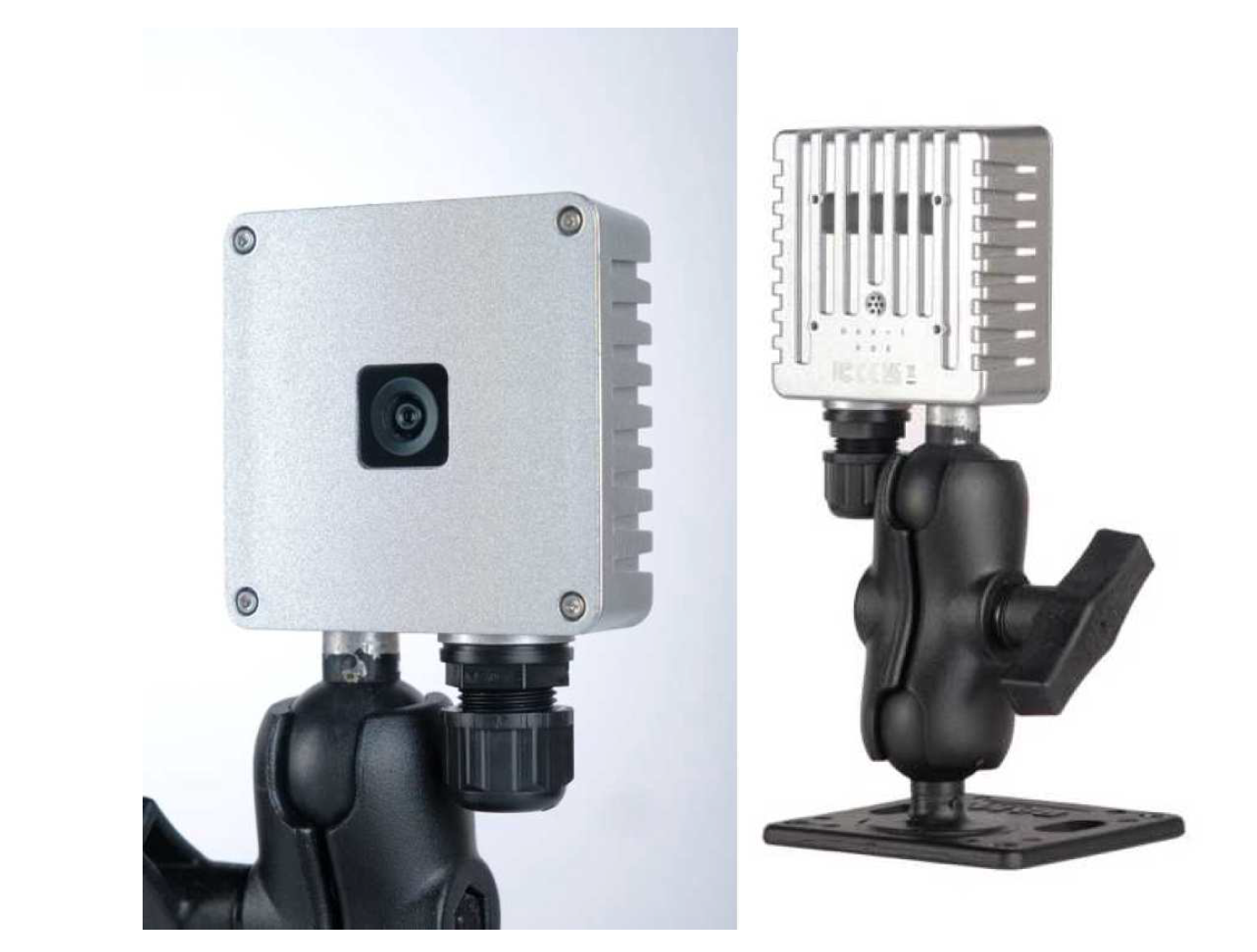

FlexVision -AI Powered Intersection Management

COMPACTVISION is an AI traffic detection device designed as an alternative to inductive loops.  The AI traffic detector is a class leading detector with a range of up to 80m. There is an embedded AI traffic detector engine which allows COMPACTVISION to detect and classify vehicles, bicycles, pedestrians, buses and  HGV’s.  Using AI other classifications can be customised.

The AI traffic detector can be used in a variety of applications such as:

  • Stop line detection
  • Turn movement detection and counting
  • Bicycle detection
  • Counts on dedicated bicycle areas and lanes, and all red extension for pedestrians.

The AI traffic detection data can be sent to one or more contact closure cards via the built in Ethernet interface. These outputs can be connected to the traffic signals controller as an alternative to inductive loops. There are up to 8 detection zones available including advanced bicycle stop lines areas and pedestrian crossings.

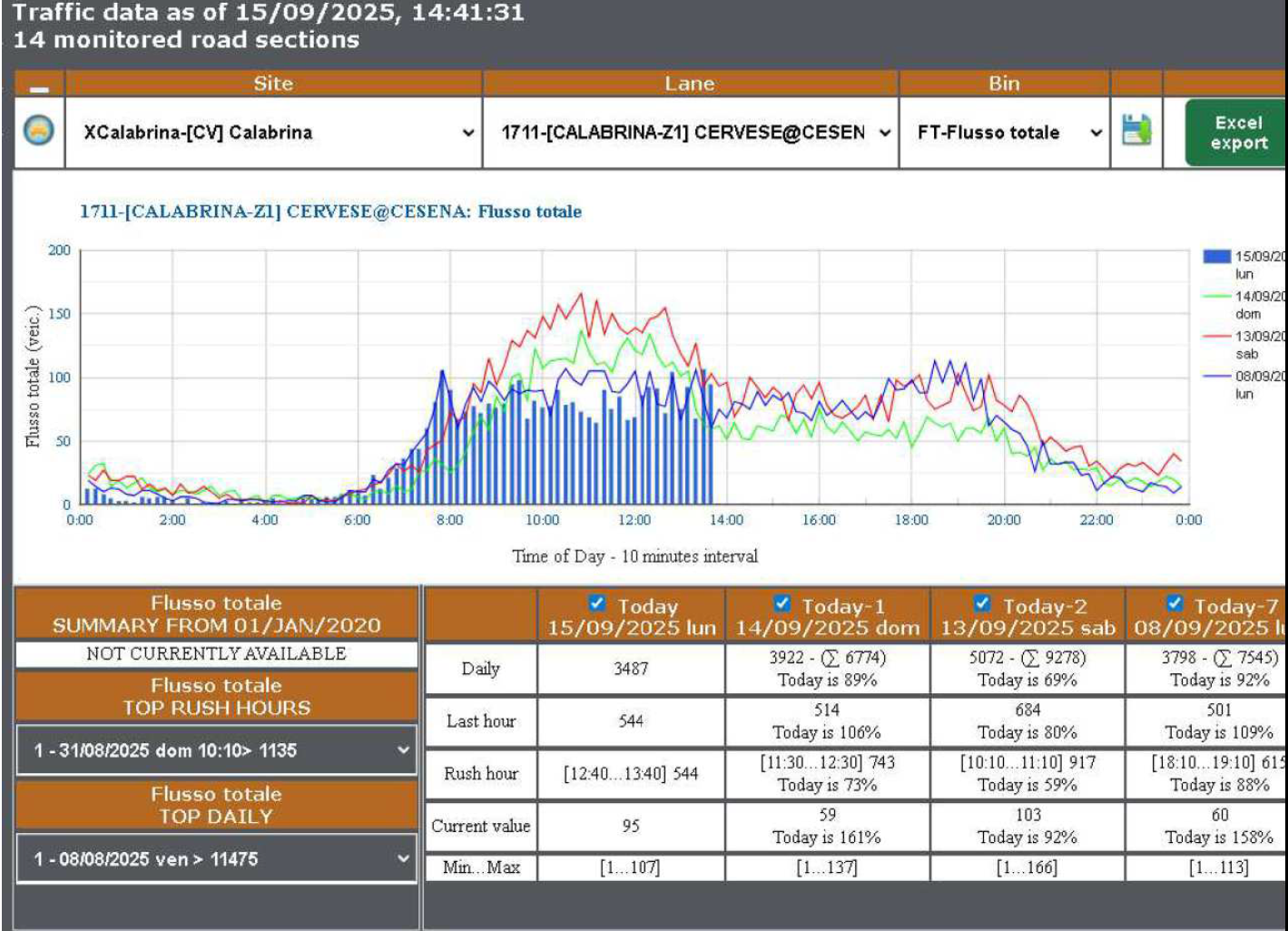

The count and classification data can be sent to our accompanying data analytics platform  TrafficWeb data analytics tool, also manufactured by Sensebit.

Vehicle detection
Traffic Data Collection
Video traffic detection

KEY FEATURES OF COMPACTVISION

A
Presence detection / counts with up to 6 classes
A
Turn movement detection
A
Bicycle detection on advanced dedicated bike area
A
Person/bicycle/e-scooter count classifier on dedicated side road lanes
A
Green light extension for pedestrians and vulnerable users
A
Stopbar and advance detection with just one camera
A
Highly cost effective
A
Relay outputs interface card to traffic controller
A
Standard PoE, 2-wire for power and data, 2 built-in outputs
A
Wifi for local configuration
A
High frame rate, configurable field of view

Flexible architecture

Choice of CAT5 Ethernet or 2-wire (Ethernet) cable with power (depending on model)

  • 1 contact closure card (8 outputs) supports up to 4 cameras
  •  1 camera can use up to 32 outputs (4 contact closure cards)
COMPACTVISION Technical Data Sheet

FOR ENQUIRIES & ORDERS

Contact us today on:
info@ct-technologyinfo.com

FlexVision Traffic Intersection Sensor

Easy set up
