HEIGHT RESTRICTORS AND ACCESS GATES
MANUFACTURED IN EUROPE
height restrictors
CODE: 202517

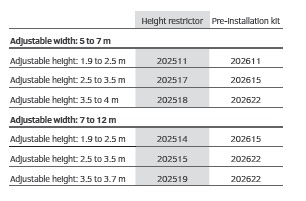

HEIGHT RESTRICTORS:
TECHNICAL DATA
Access height: from 1.9 to 4 m.
Width: from 5 to 12 m.
Structure: steel tubes, 120 x 120 mm and 80 x 80 mm. Equipped with single or double tension cable.
Locking: with stainless steel pins. Pin locked with padlock (included) or 11 mm triangle-key lock (factory fitted).
Finish: lacquered in white over galvanised steel with red reflective strips (contact us for other colour options such as yellow and black). Installation: on base plates with stencil and ground hooks included in the pre-installation kit.
Levelling: with locknuts placed under the base plates.
Optional: height gauge rail
To order
Contact us today on:
chris@ct-technology.ie

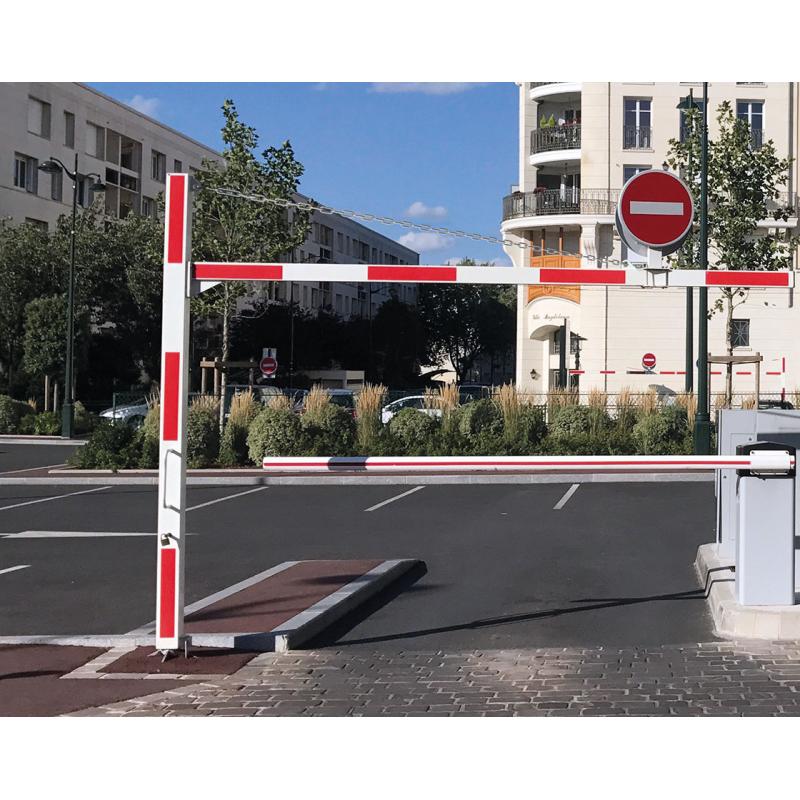

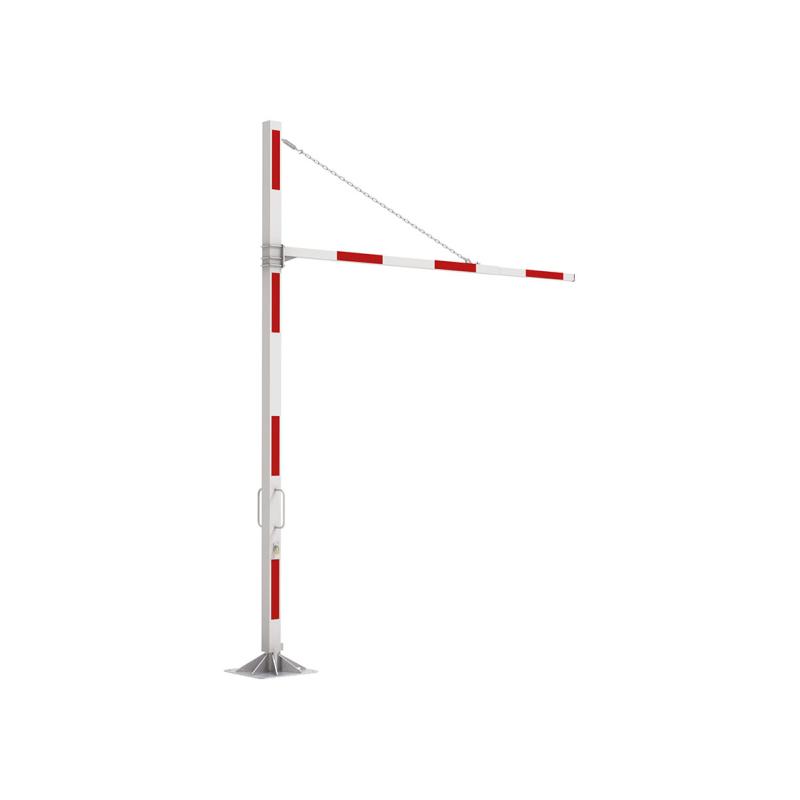

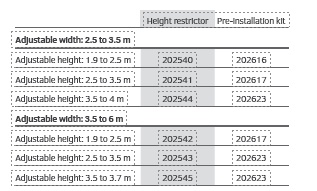

Height Restrictors – Half width, Swivel
CODE: 202540
HALF-WIDTH SWIVEL HEIGHT RESTRICTORS:
TECHNICAL DATA
To order
Contact us today on:
chris@ct-technology.ie

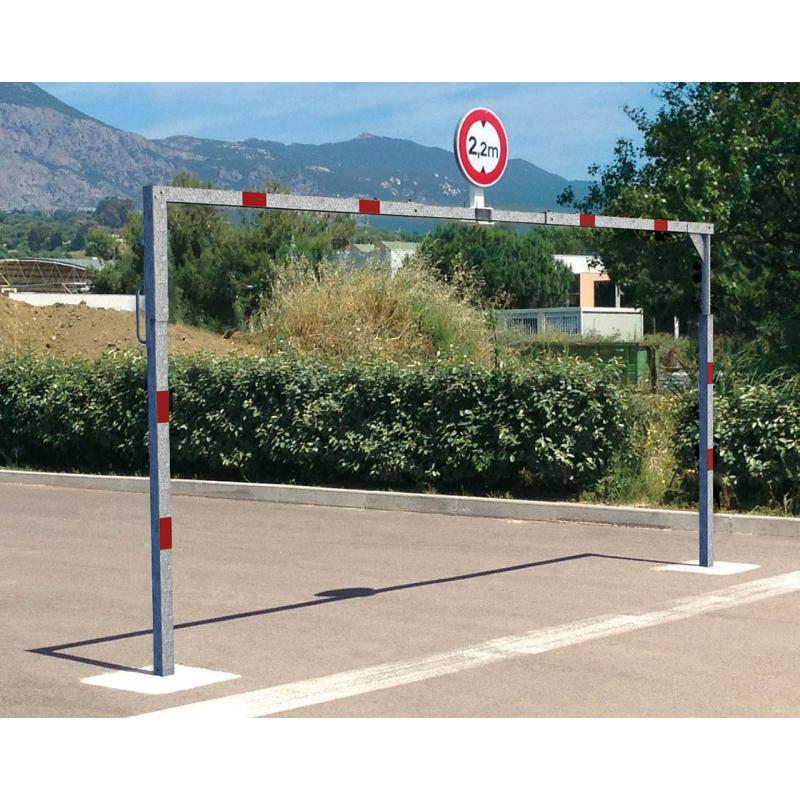

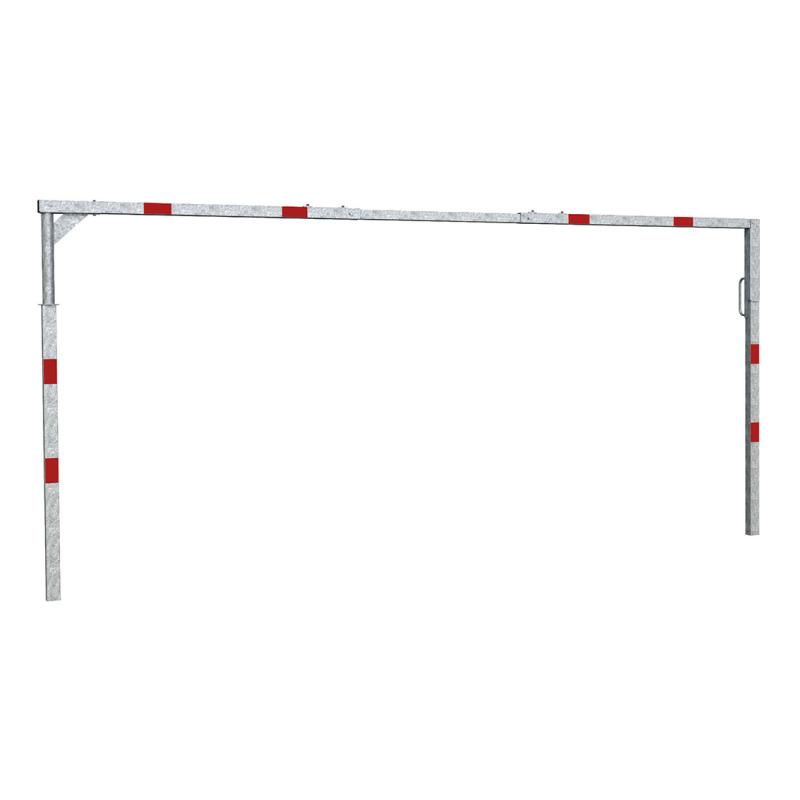

ECO Swivel Height Restrictors
CODE: 202306
ECO SWIVEL HEIGHT RESTRICTORS:
TECHNICAL DATA
To order
Contact us today on:
chris@ct-technology.ie

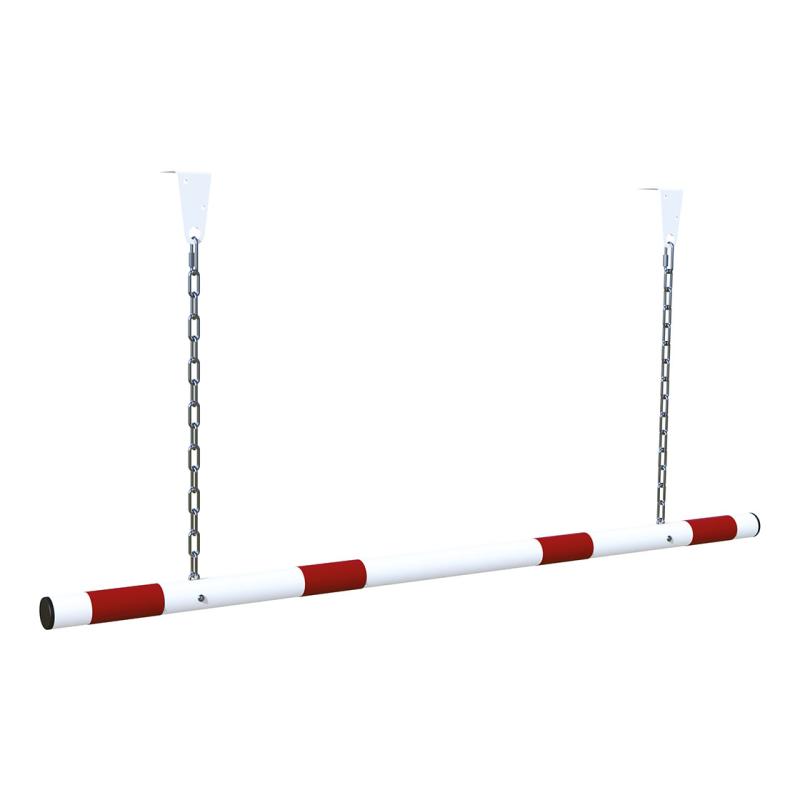

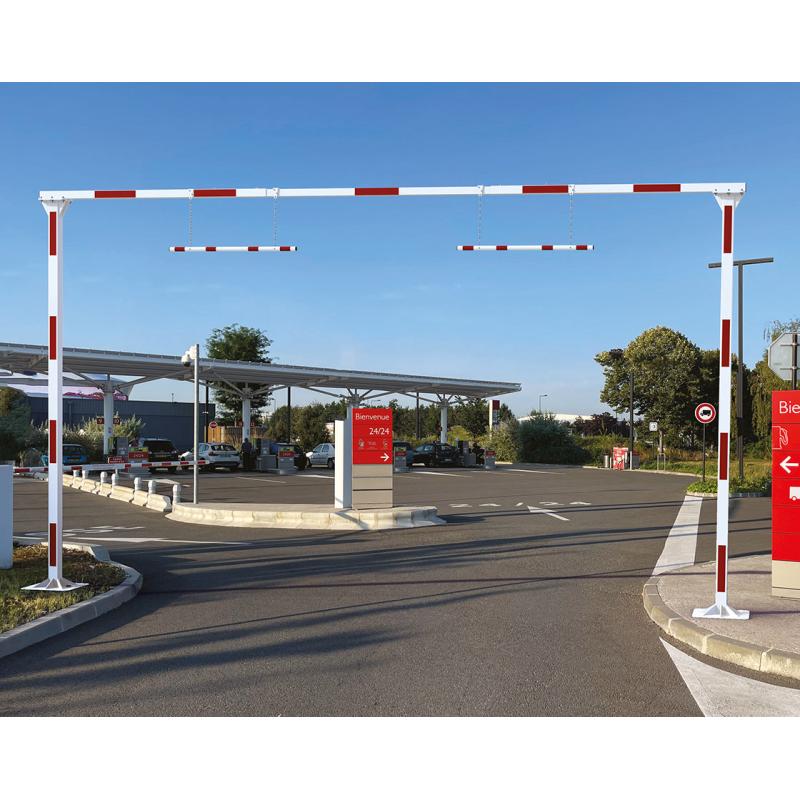

Height Restrictors – RAIL
CODE: 202601
HEIGHT RESTRICTOR RAIL:
TECHNICAL DATA
Structure: steel tube, ø 50 mm.
Finish: lacquered white over galvanised steel with red reflective strips. Installation: 500 mm chain and rings, compatible with all height restrictors.
To order
Contact us today on:
chris@ct-technology.ie

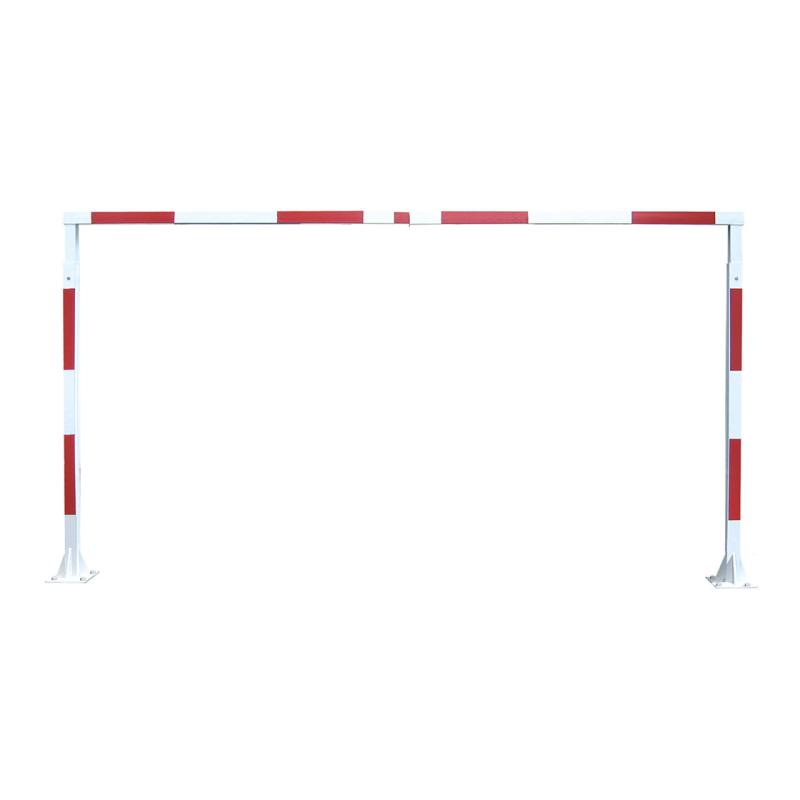

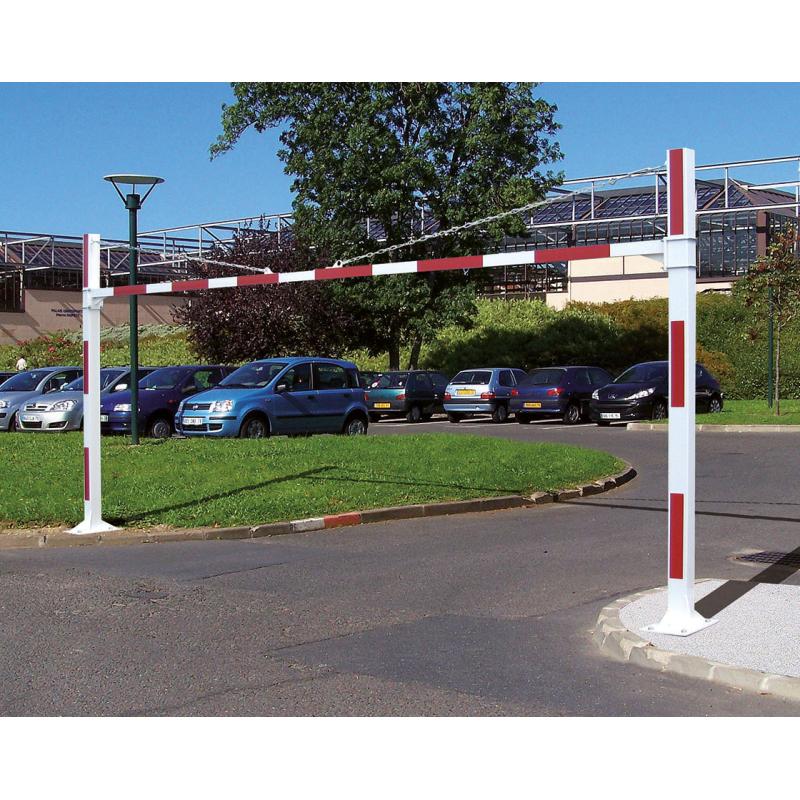

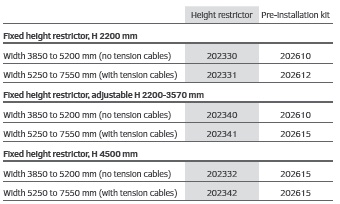

HEIGHT RESTRICTORs – Universal Fixed
CODE: 202330
UNIVERSAL FIXED HEIGHT RESTRICTOR RAIL:
TECHNICAL DATA
is simple We offer a pre-installation kit separate from
the height restrictor itself so that you can prepare your concrete surfaces in advance.
Height above ground: from 2.2 to 4.5 m.
Structure: steel tubes, 80 x 80 mm or 120 x 120 mm.
Finish: lacquered in white over galvanised steel with red reflective strips (contact us for other colour options such as yellow and black). Installation: on base plates with stencil and ground hooks included in the pre-installation kit.
Optional: height gauge rail.
To order
Contact us today on:
chris@ct-technology.ie

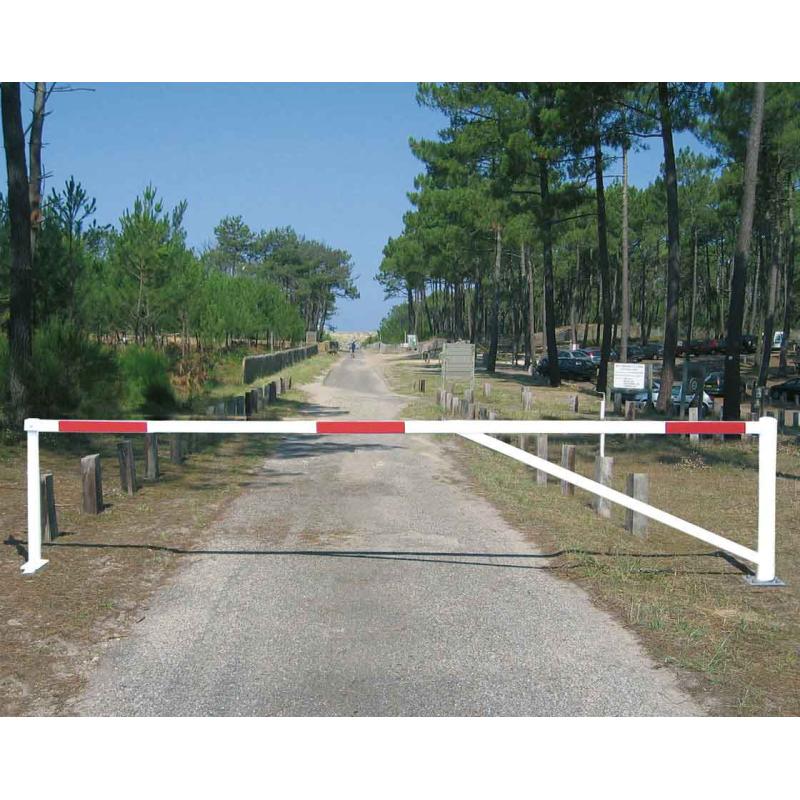

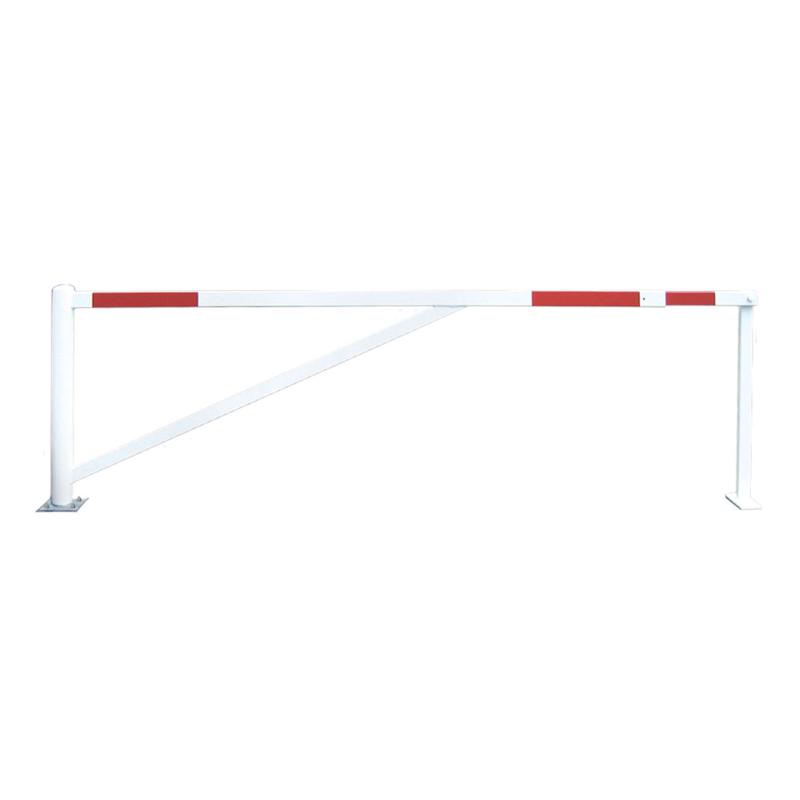

ACCESS BARRIER – UNIVERSAL SWIVEL
UNIVERSAL SWIVEL BARRIER CODE: 203192
PRE-INSTALLATION KIT CODE:202613
UNIVERSAL SWIVEL BARRIER:
TECHNICAL DATA
This telescopic car parking access barrier adjusts to all road widths, from 3 to 4.75 metres. We offer a pre-installation kit separate from the barrier itself so that you can prepare your concrete surfaces in advance.
Structure: steel tubes, 70 x 40 mm and 60 x 30 mm.
Width: adjustable from 3000 to 4750 mm, locked with screws.
Locking: with padlock (included). Second post included for locking in open position.
Finish: lacquered white over galvanised steel with red reflective strips (contact us for other colour options such as yellow and black). Installation: on base plates with mounting brackets (included).
To order
Contact us today on:
chris@ct-technology.ie

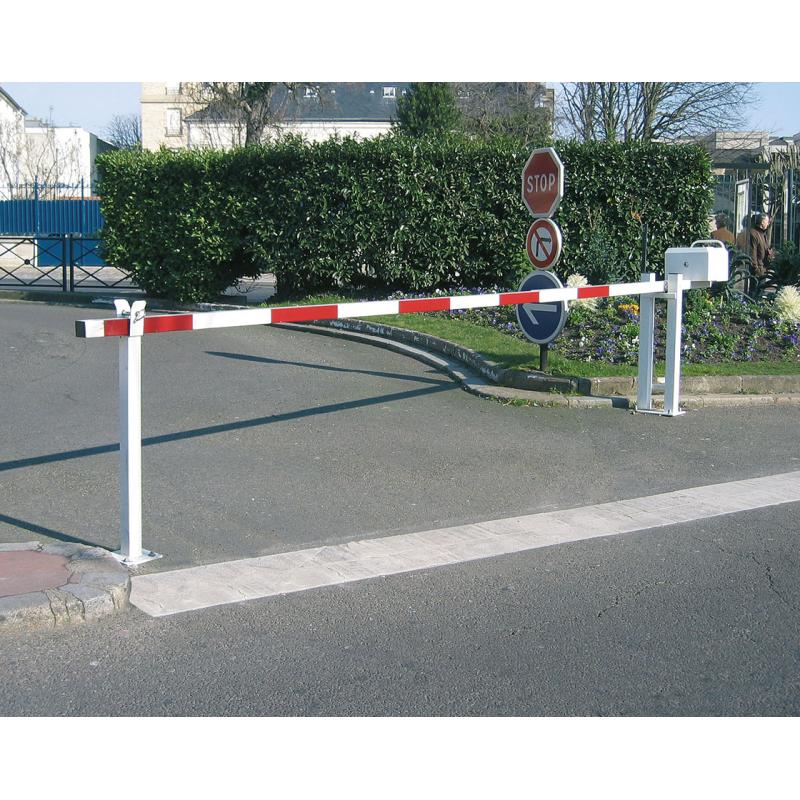

UNIVERSAL ALUMINIUM BOOM ACCESS BARRIER
CODE: 202170
UNIVERSAL ALUMINIUM BOOM BARRIER: TECHNICAL DATA
Perfect for filtering vehicle traffic. The telescopic barrier adjusts to all road widths (from 3.05 to 6.40 m) – right down to the centimetre.
Structure: 80 x 80 mm aluminium bar extended with 70 x 70 mm aluminium bar.
Width: adjusts from 3200 to 6500 mm (distance between the axis of rotation and the end of the barrier) for a post-to-post width of 3050 to 6400 mm.
Opening system: rotation on stainless-steel axis on ball bearings. Counterweight must be integrated into a box attached to one end of the bar.
Locking: in raised position (on main post) or lowered position (on tip support post) with pin and padlock, included. Delivered with tip support post (steel).
Finish: painted white with red reflective strips (contact us for other colour options such as yellow and black).
Installation: on base plates with mounting hardware included.
To order
Contact us today on:
chris@ct-technology.ie

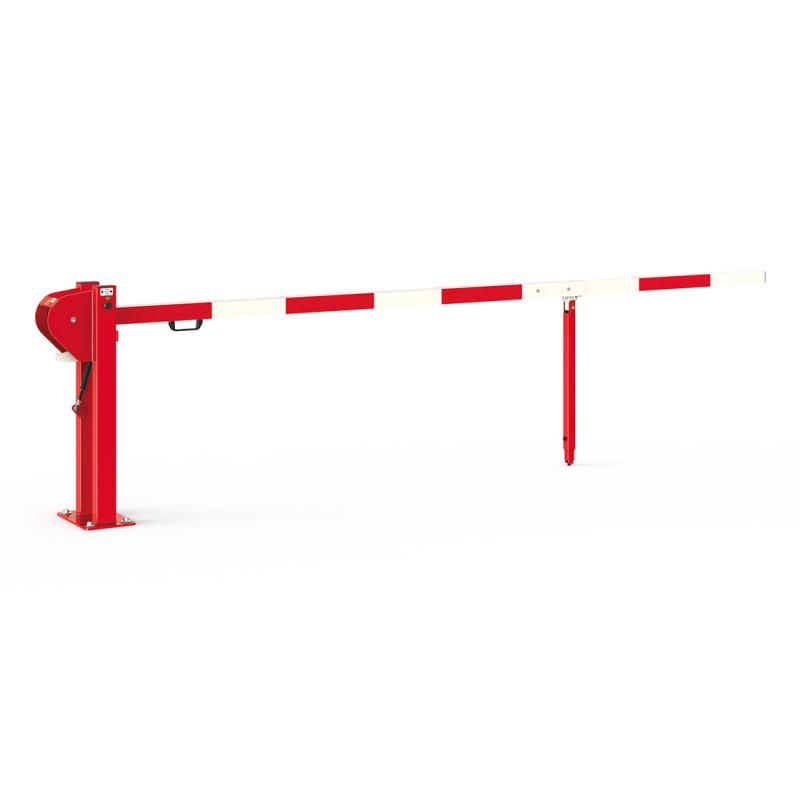

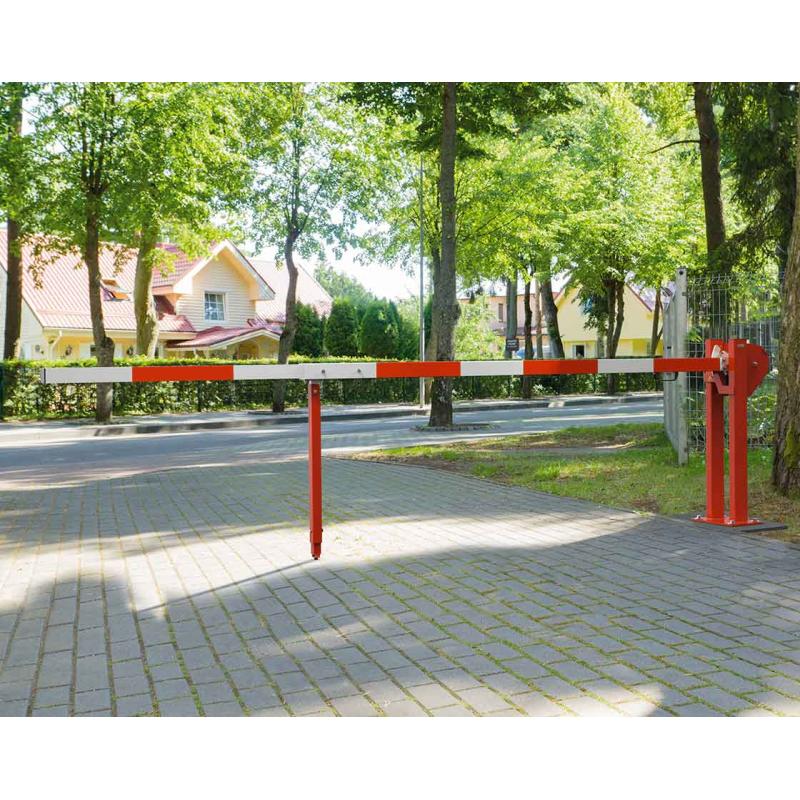

UNIVERSAL BOOM BARRIER with GAS CYLINDER SYSTEM
CODE: 202171
UNIVERSAL ALUMINIUM BOOM BARRIER WITH GAS BARRIER: TECHNICAL DATA
The gas cylinder system allows easy opening and closing to your car parking without any protruding counterweight, it can be positioned close to a wall. In addition, the pendulum support arm grips the ground and ensures stability.
Structure: 80 x 80 mm aluminium tube extended by a 70 x 70 mm aluminium tube.
Width: adjusts from 3000 to 4000 mm (distance between axis of rotation and the tip of the barrier).
Operating mechanism: integrated gas cylinder to compensate the weight of the boom and facilitate its use. Rotation on a stainless-steel axel. Automatic locking.
Locking options: key padlock or triangle key padlock . Height adjustable pendulum support arm (+/-100 mm).
Finish: lacquered white steel with red reflective strips. Pendulum support arm finished in RAL 3020.
Installation: on base plates with stencil and ground hooks included.
To order
Contact us today on:
chris@ct-technology.ie

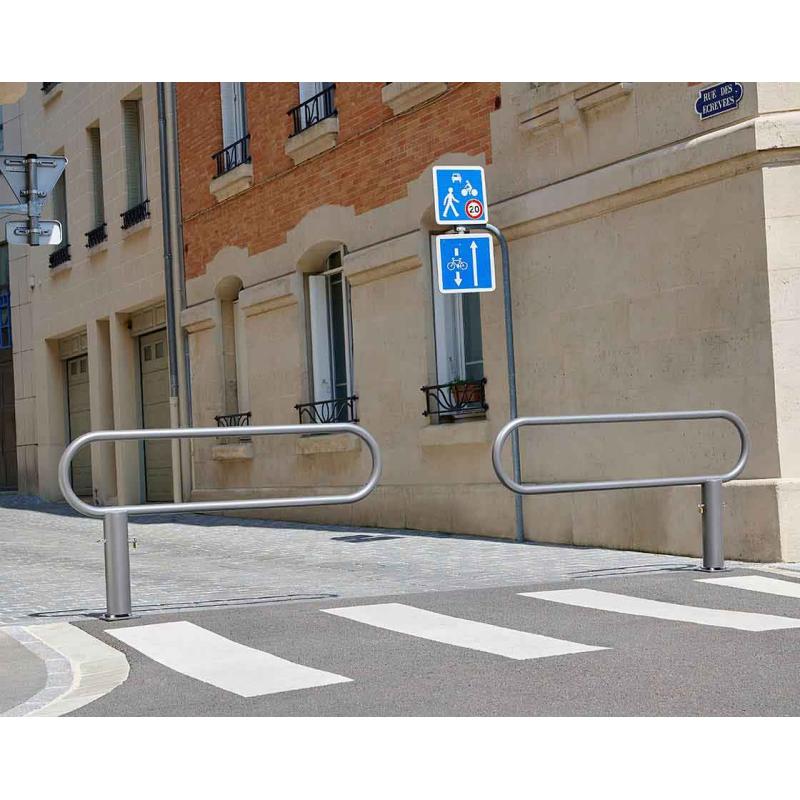

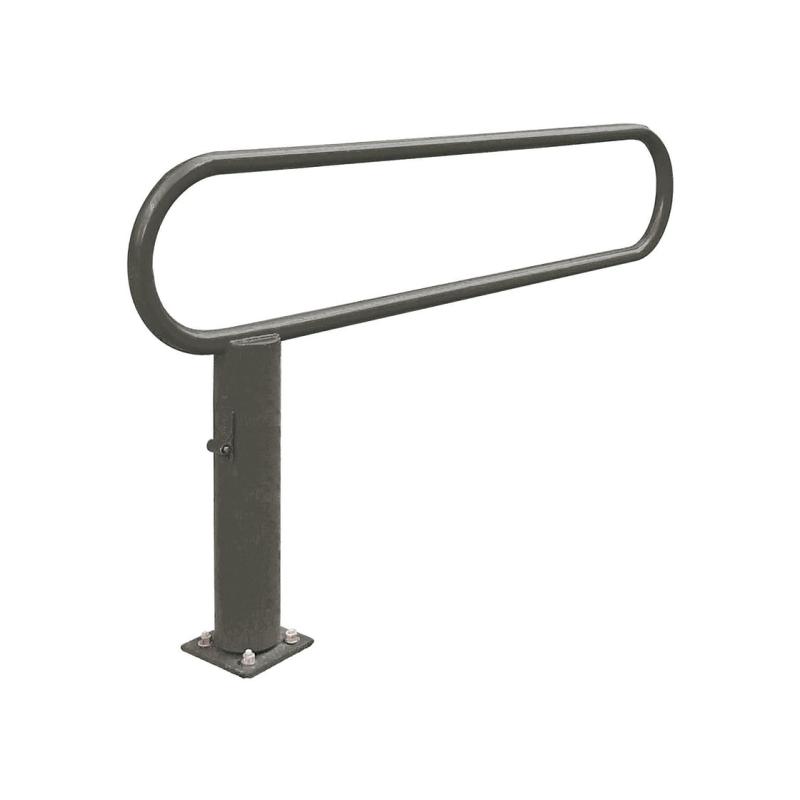

SWIVEL BARRIER
CODE: 203132
SWIVEL ACCESS BARRIER:
TECHNICAL DATA
A car parking access-control barrier available in 2000 mm and 2300 mm versions. This latest model is equipped with a vertical tube to which a sign can be attached.
Two lengths: 2000 or 2300 mm.
Passage width: 1600 or 2150 mm.
Structure: steel tube, ø 60 mm.
Opening system: pivot-mounted shaft.
Locking: with ø 20 mm pin and padlock (included). Can be locked at 90° in open position.
Finish: galvanised steel or paint over galvanised steel in our colours.
Installation: on 200 x 200 mm base plate with concreted anchor rods (included).
To order
Contact us today on:
chris@ct-technology.ie

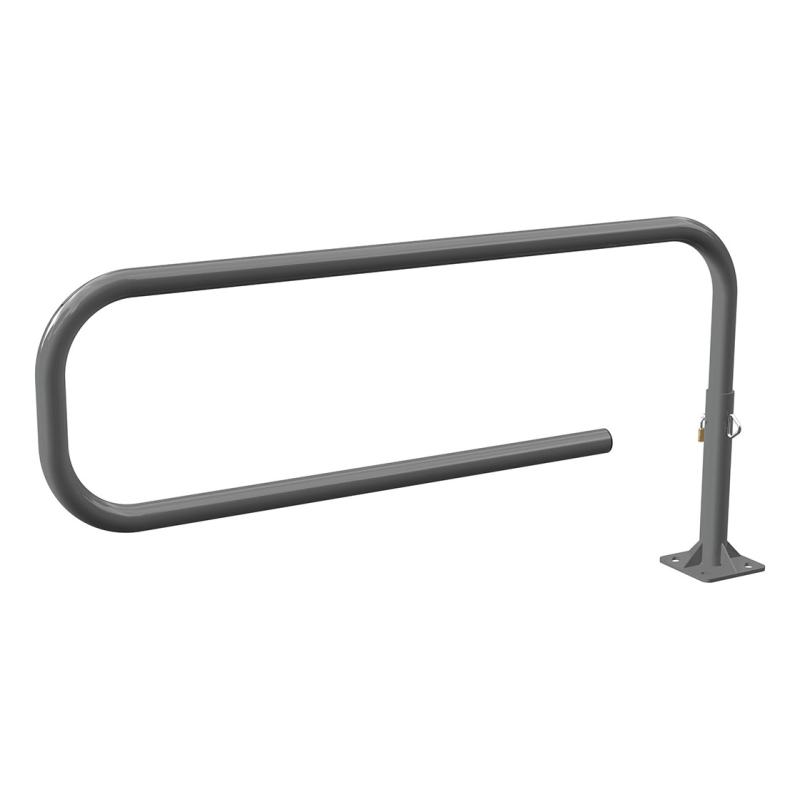

LIGHTWEIGHT SWIVEL GATE
GALVA CODE: 203125
GALVA + PAINTED CODE: 203128
LIGHTWEIGHT SWIVEL GATE:
TECHNICAL DATA
Structure: ø 60 mm steel tube with black plug.
Length: 1800 mm.
Opening system: pivots in outer tube.
Locking: with ø 16 mm pin and padlock (included). Can be locked at 90° in open position.
Finish: galvanised steel or paint over galvanised steel in our colours
Installation: on base plates with reinforcing gussets. Anchor rods included for concreting in to the ground.
To order
Contact us today on:
chris@ct-technology.ie
ACCESS BARRIER – DECORATIVE SWIVEL
CODE: 203129
DECORATIVE SWIVEL BARRIER:
TECHNICAL DATA
A decorative access control barrier that works well on its own or in conjunction with the Jersey decorative railing. An effective and aesthetically pleasing way to help manage traffic flows.
Length: 2010 mm.
Structure: steel tube 50 x 50 mm and 30 x 30 mm.
Opening system: pivot-mounted shaft.
Locking: with ø 20 mm pin and padlock (included). Can be locked at 90° in open position.
Locking options: 11 mm triangle key or 14 mm captive triangle key. Finish: galvanised and painted in our RAL colours (see page 10). Installation: on 200 x 200 mm base plate with concreted anchor rods (included).
To order
Contact us today on:
chris@ct-technology.ie
ACCESS BARRIER –SELECTIVE
CODE: 203265
SELECTIVE ACCESS BARRIER:
TECHNICAL DATA
Structure: ø 50 mm steel tubes with pivoting and fixed elements. Opening system: pivots on ø 89 mm inner tube with swivel stop and 100 x 100 mm upper tube with 2 lubrication points.
Finish: galvanised steel or paint over galvanised steel in our colours.
Installation: on base plates (mounting brackets included).
Easy installation: “arm” of swivel element is screwed to the pivot.
