Covered walkways

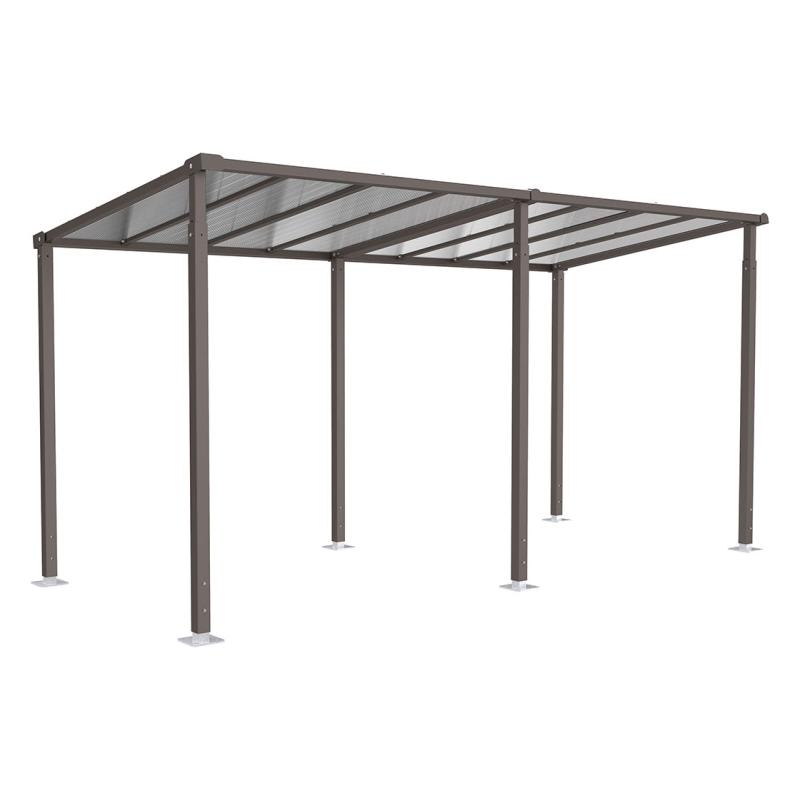

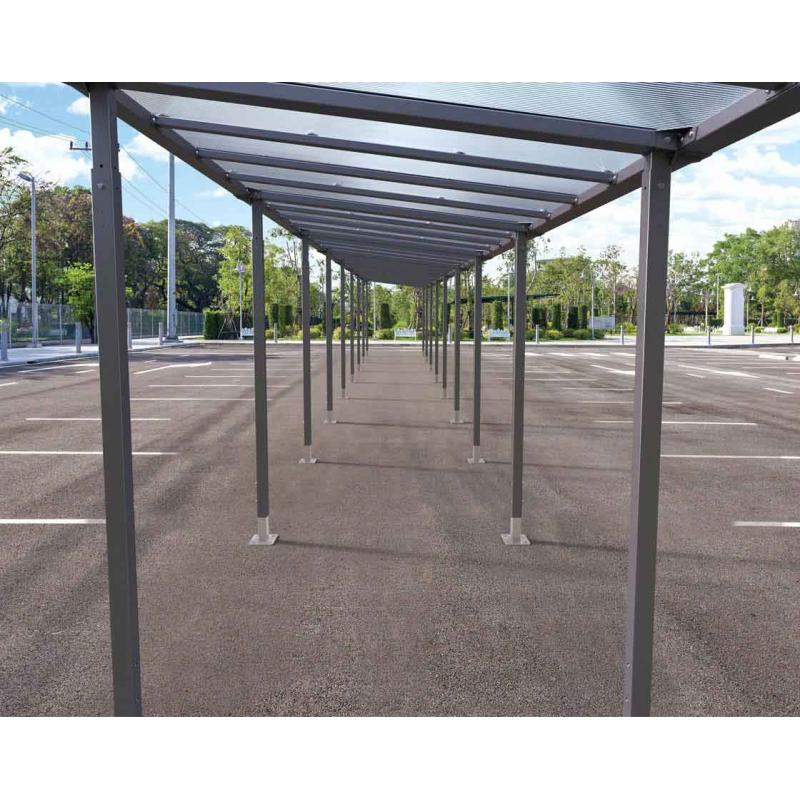

MILAN COVERED WALKWAY: TECHNICAL DATA

Dimensions: 2500 mm long x 2880 mm high x 2434 mm deep.
Posts: square steel tubes, 80 x 80 mm.
Roof: 10 mm anti-UV-treated cellular polycarbonate panels.
Finish: galvanised and painted in our RAL colours.
Installation: on base plates, adjustable-height legs, expansion anchors included.

OPTIONS:

• Side cladding: aluminium-profile frame and 10 mm anti-UV-treated cellular polycarbonate panels.
• Extension: extension module, 2500 mm long.

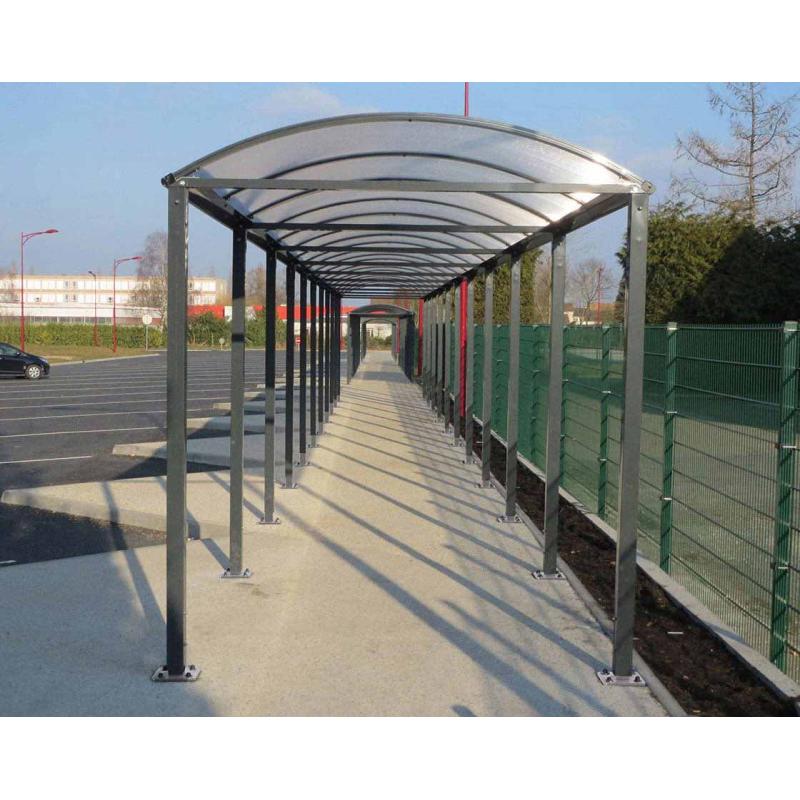

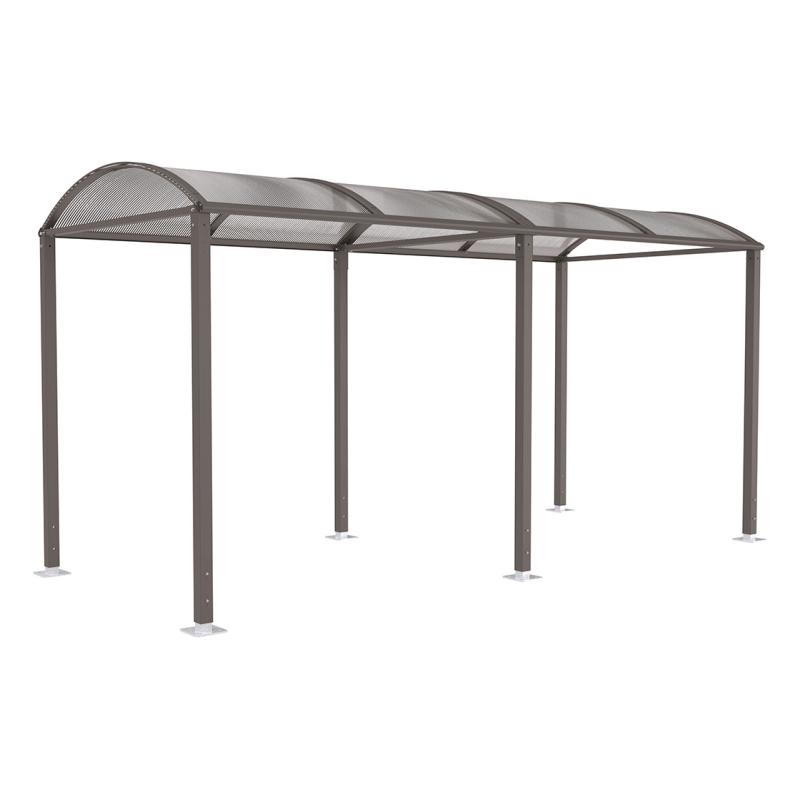

VOUTE COVERED WALKWAY: TECHNICAL DATA

Dimensions: 2500 mm long x 2635 mm high x 2090 mm deep.
Posts: square steel tubes, 80 x 80 mm.
Roof: anti-UV-treated cellular polycarbonate dome, 6 mm thick.
Finish: galvanised and painted in our RAL colours.
LED lighting: LED strip integrated into the structure and installed at the factory.
Power supply: 220V, must be connected by a professional (circuit breaker not included).
Installation: on base plates, adjustable-height legs, expansion anchors included.

OPTIONS:

• Rear and side cladding: aluminium-profile frame and anti-UV-treated cellular polycarbonate panes, 10 mm thick.
• Extension: extension module, 2500 mm long.
