Above Ground Radar Detectors
Why choose above ground radar detectors in place of urban, below-ground inductive loops?
Above ground radar detectors are significantly quicker and easier to install
They eliminates the need for disruptive, costly roadworks
They are effective at detecting both vehicles and bicycles, particularly carbon bikes
Installation is clean, sustainable and minimises carbon footprint
Above ground radar devices are durable and don’t ‘chatter’ due to poor detector set up or failing loops/feeders
ICOMS TMA-122: ABOVE GROUND, DUAL-ZONE VEHICLE AND BICYCLE Radar Detector

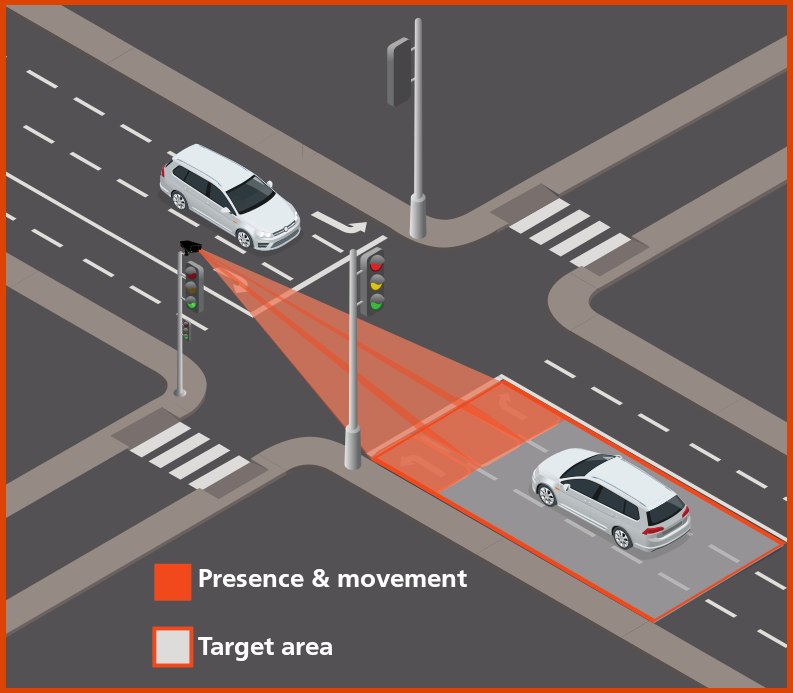

In just one detector, the Topas Approved Icoms TMA-122 detects both vehicle and bicycle movement and presence. Designed to replace conventional XYZ loop systems, the radar has two relay outputs – one for the 40m zone and a presence detector for stopped vehicles. These can be N/O (normally open) or N/C (normally closed). One activates when a vehicle moves in a 40m area before the traffic signal pole. The second relay activates when a vehicle moves or stops in an adjustable area at the stopline.
Unlike other detectors, no software is required for set up. The presence zone is set by selecting the size of the stop line zone, using a simple encoder switch on the rear of the detector. Presence time-out can also be easily set with the switch.
ICOMS TMA-122 Product features:
- Topas Approved
- Detachable cable at the bottom for simple change out
- Maintenance-free and no lens cleaning required or calibration
- Delivered ready to install, including cable, fixing support, screws and bolts
- Performance maintained under all weather conditions including frost, snow, and fog
- Works 12-60v DC or 10-42 AC @ 50hz
To order
Contact us today on:
chris@ct-technology.ie
ICOMS TMB-134: MULTI-Zone (9 Zones) Radar VEHICLE AND BICYCLE Detector
The Icoms TMB-134 is the most flexible and versatile radar detection device in the product range. Developed to manage multi-lane intersections, it replaces up to 9 inductive loops, offering separate detection areas for each lane, including the turn-right or turn-left lanes. It manages approaching vehicles and bicycles as well as the ones waiting at the stop-line.
Key advantages compared to camera detection systems:
- Very low power consumption
- Minimal carbon footprint
- Detects for up to 9 Zones
- Performs at nighttime light levels (down to 20 Lux)
- Performs in all weather conditions
To order
Contact us today on:
chris@ct-technology.ie
ICOMS TMB-134 Product features:
- Easy, quick above ground installation
- Can be mounted onto existing traffic poles
- Accessible for interventions or maintenance
- Detects moving and stationary vehicles
- Range: up to 70m from installation point
- Detection of vehicles and bicycles
- Configuration with dedicated software
- Works in all weather conditions

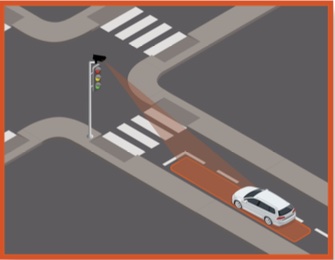

ICOMS TMA-60: All vehicle sensor with adjustable detection range
The Icoms TMB-60 is a multifunctional radar with adjustable range detection range.
When a speed within the chosen distance range is deteted, the relay is activated, until the movment stops or no longer fulfills the chosen conditions.
- Shock resistent
- Detects up to 150m
- Detects bicycles
- Adjustable detection distance
ICOMS TMB-60 Product features:
- Call a phase up to 150m
- Extend a phase
- VMS activation
- Wrong way detection
To order
Contact us today on:
chris@ct-technology.ie

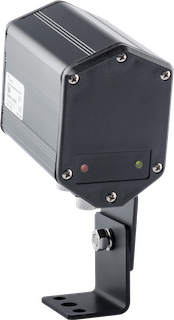

ICOMS TMA-011: Pedestrian and cyclists detection
The Icoms TMB-011 is a radar sensor that allows, among other applications, to extend the green phase on the on-crossing.
Includes:
- Settings without radar opening or software
- Self-monitoring
- Bi-directional detection
- Long range up to 30m
- Adjustable distance of detection
ICOMS TMB-011 Product features:
- For intersections – adaptive green for cyclists and pedestrians
- For intersections – green phase call on bicycle path
- Activation of lighting on motion detection
- Activation of signs warning motorists of the presence of cyclist or pedestrains in the vicinity
To order
Contact us today on:
chris@ct-technology.ie
ICOMS TMA-296: Multifuctional sensor: overspeeding and adjustable detection range
The Icoms TMB-296 is a multifunctional radar equipped with 2 relay outputs. It can detect vehicles at intersections, as well as activate speed warning devices.
- Shock resistant
- Relay ‘over-‘ or ‘under-speeding’
- Relay ‘all vehicles’
- Adjustable distance of detection
- Settings without radar opening.
ICOMS TMB-296 Product features:
- ‘Green bonus’ intersections
- Call or extend a phase
- VMS activation
- Wrong way detection
- Detection ata a defined distance
To order
Contact us today on:
chris@ct-technology.ie
